Unknown plugs??

[Woopnut]

For all the switch junkies like me out there, I was able to finally source the K series Hazard switch. Picked it up at Discounted OEM Parts & Accessories | PartsPitStop.

Has anyone figured out where the fuse is in the fuse box that goes with this factory wire harness? I looked in the fuse boxes and nothing is labels as bumper aux or bumper lights.

Also, does anyone know if there is a factory relay for these bumper lights mounted somewhere and part of this harness? Or what the max power the factory wire harness is set up to handle? I can't imagine the lights this factory harness is set up for these bumper lights is very high as the wire looks to be maybe 16-18 gauge.



[JTBarlow]

Has anyone figured out where the fuse is in the fuse box that goes with this factory wire harness? I looked in the fuse boxes and nothing is labels as bumper aux or bumper lights.

Also, does anyone know if there is a factory relay for these bumper lights mounted somewhere and part of this harness? Or what the max power the factory wire harness is set up to handle? I can't imagine the lights this factory harness is set up for these bumper lights is very high as the wire looks to be maybe 16-18 gauge.

The fuse for the bumper lights is in the small fuse block, top right corner, labeled “lights”
The circuit runs taillights, DRL and switch lighting as well. The fuse is a 15 amp but with everything else on the circuit I wouldn’t recommend more than a 10 amp draw at the bumper lights.



[JTBarlow]

So can these switches be purchased from Carling directly?

No. They’re proprietary for Polaris. Even the website posted a few posts ago is higher priced than Polaris, meaning they probably are just a reseller.

The 2 options are either buy the switch from Polaris or clip the plug end and re-wire for a standard switch.



[Ryan]

So can these switches be purchased from Carling directly?

No sir, JT is correct... I contacted Carling directly and they told me they are working with Polaris to allow them to sell them outright but currently Polaris is not allowing it. Its a 100% Polaris owned design and can only be purchased through their dealers. Several are not available yet and still show as backordered everywhere I look.



[JTBarlow]

While even Polaris’ website can say “backordered” I’ve found that going to my local dealer, they can generally locate the nearest part in their network and get it to me in a couple days. There’s only been a couple times where it was backordered for them too.



[cs300823XPED]

They’re for driving lights. It’s pre wired and has a switch plug under the dash by the headlight switch

JT Does the ADV 5 have the same setup do you know ? TIA



[JTBarlow]

JT Does the ADV 5 have the same setup do you know ? TIA

Yes. They’re all pre-wired for the bumper/driving lights.



[cs300823XPED]

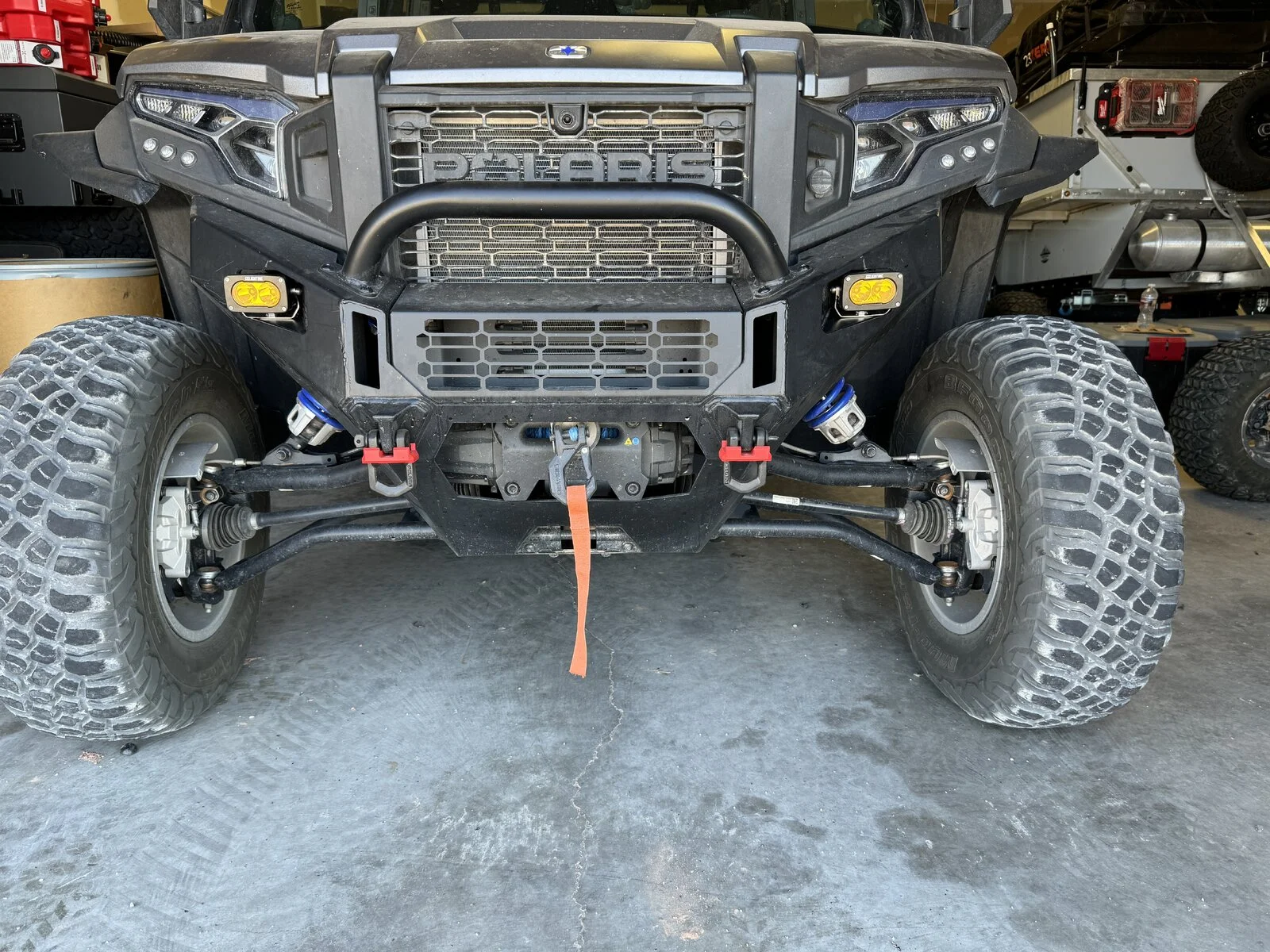

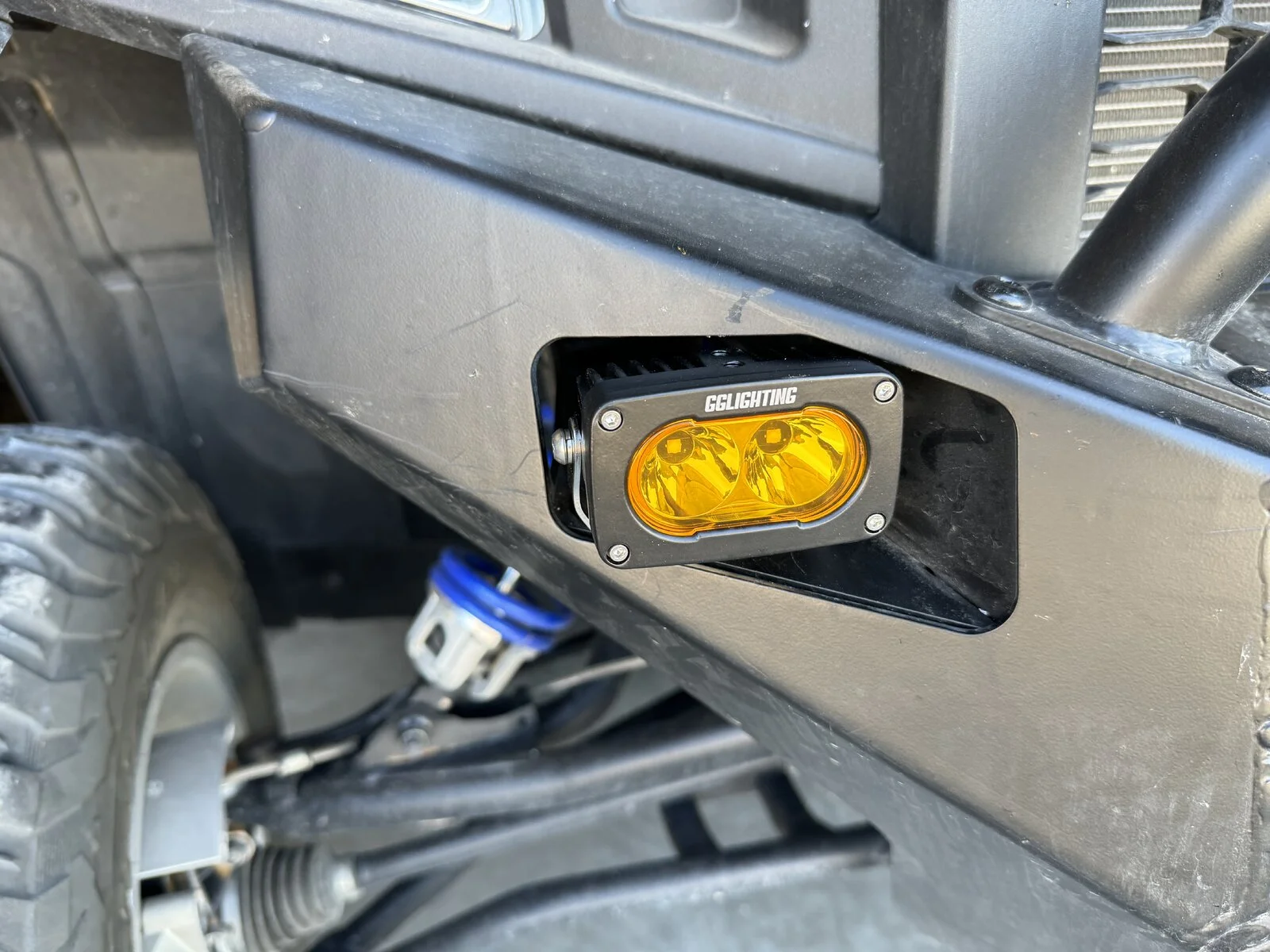

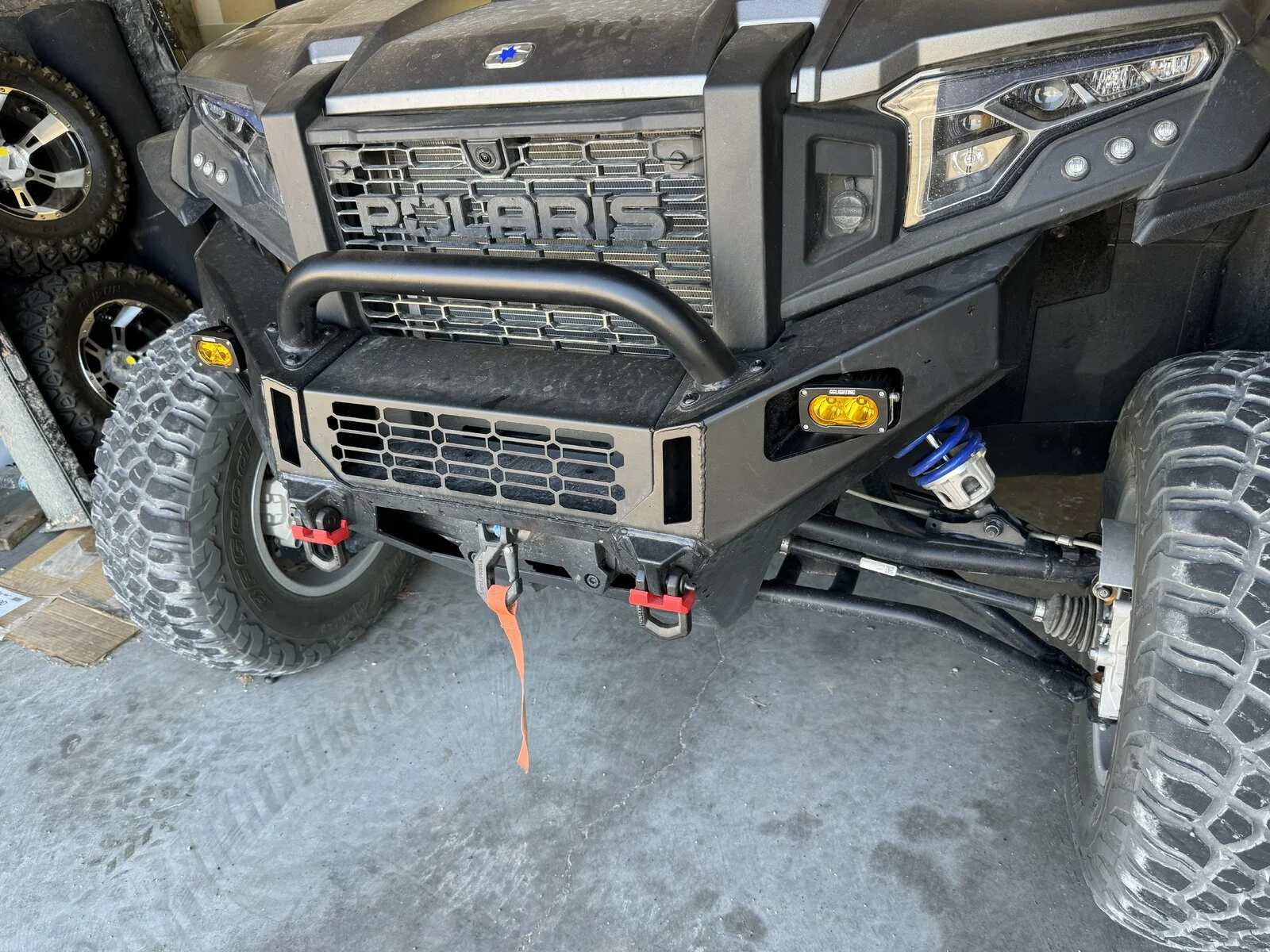

There was one with a cap but hanging loose on the driver side that had the power from the switch. I didn’t see any uncapped on mine. Also I just bought the Y cable from Polaris to connect the 2 lights. I bought a pair of gp10s from GG Lighting for my driving lights. They don’t fit completely into the hole on the HD bumper but still work good. And they come with deutsch connections. View attachment 1045View attachment 1046View attachment 1047

JT Do I have to pull off the dash to locate the harness or can I locate from below ? TIA



[JTBarlow]

JT Do I have to pull off the dash to locate the harness or can I locate from below ? TIA

It takes a little fumbling around (sometimes the harness plug is taped to the wires) but you can reach it from underneath.



[cs300823XPED]

It takes a little fumbling around (sometimes the harness plug is taped to the wires) but you can reach it from underneath.

Ill give it a shot and see if I can find it bud thanks !!
